Control of Position Deviation for Segmented Linear Guides on Long-Travel Equipment

Release time:2026-07-22 Source:台湾高技GAOJ-K Author:台湾高技GAOJ-K Click quantity:70

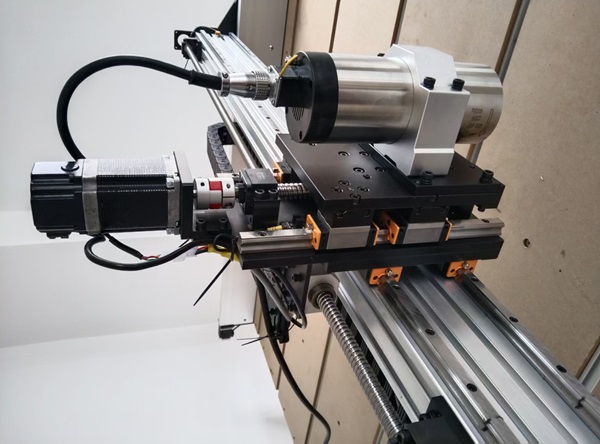

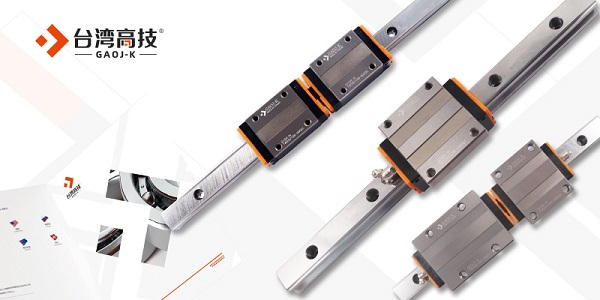

Long-travel equipment adopts linear guides with far longer moving strokes than standard models. Limited precision of single guide rails and connection errors from multi-section splicing easily generate cumulative errors that expand gradually along the stroke, directly damaging the overall positioning accuracy of machines.




  1. Unified Global Reference Benchmark

    Before splicing, build an absolute measurement coordinate system covering the whole travel range with laser trackers. All processing, installation and inspection of segmented guides follow this benchmark to eliminate systematic drift caused by repeated reference conversion from the source.


  2. Independent Calibration & Regular Arrangement

    Each guide segment is accurately calibrated for error vectors such as straightness and twist before delivery. During splicing, arrange segments according to their error characteristics to turn local errors into regular global deviations.


  3. Joint Fine-Tuning & Over-Location Support

    Design adjustable wedges or eccentric pin structures at connecting ends, matched with over-location support points and precise torque locking. Avoid sudden steps or angle differences at joints caused by uneven bolt preload.


  4. Section-by-Section Follow-Up Calibration

    After installing each segment, take its actual spatial posture as the benchmark for the next section. Real-time monitoring and adjustment via on-site measuring instruments stop cumulative errors from amplifying section by section.


  5. Full-Stroke Software Compensation

    After fixing all guides, conduct dense scanning of the entire travel to generate a 3D error map and import it into the control system. Interpolation algorithms correct residual hardware deviations at any target position in real time.


  6. Dynamic Decoupling of Thermal Deformation

    Arrange temperature sensors along guides to detect temperature differences of each segment. Reserve directional expansion gaps and build models based on linear expansion coefficients. The system calculates compensation values dynamically to prevent splicing accuracy loss from temperature gradients.




  7. Base Rigidity & Leveling Treatment

    Scrape and level the mounting base before splicing and add reinforcing ribs to ensure uniform load for all segments. Prevent extra torsional stress on guides induced by uneven base surfaces.


  8. Regular Recheck & In-Situ Correction

    Verify full-stroke trajectories periodically after equipment operation. Adjust local deviations via reserved joint fine-tuning structures on site and update compensation tables without complete disassembly.


  9. Feedforward Compensation for Dynamic Deformation

    Evaluate elastic deformation under high-speed or heavy-load conditions in advance, and integrate dynamic deformation trends into control feedforward commands. Maintain splicing accuracy against working condition fluctuations based on static calibration.


  10. Standardized Assembly Procedures

    Formulate detailed splicing specifications with clear adjustment steps and operating limits, and provide professional training for assemblers to reduce random manual errors.


Anchor precision matching logic during model selection, and cooperate with targeted splicing calibration processes to keep the overall positioning deviation of long-travel guides within a controllable range.
